  FS150





  Stand-alone unit for full control of the speed profile of the carriage
  Extremel

  y smooth motion to protect mechanics and gears, by self-optimizing polynomial speed transitions.
  High cutting accuracy, even during acceleration and with high line speeds
  Embedded virtual master axis (selectable)
  Excellent dynamic properties by continuous closed loop control at a cycle time
  of only 150 µsec.
  Cutting to length according to length preset or by triggering to print marks.
  Facility for making a gap after each cut
  Can operate with all 4-quadrant DC and servo drives as well as with
  simple 1-quadrant AC inverter drives and with hydraulic systems
  Easy PC setup by Windows operator software
  Remote setting facilities (e.g. cutting length) by either parallel interface, serial RS232/ RS485 interface or CANopen interface. PROFIBUS co

  ntrol is possible with use of the
  PB251 gateway (see accessories)
  Numerous useful functions like integrated batch counter, waste counter or virtual line speed simulation
  Power supply 18 – 30 VDC, built-in aux. voltage output 5 VDC for encoder supply
  +/- 10 V speed reference output for control of the carriage drive
  Closed 19‘‘ steel cassette for rack mounting and for mounting to DIN rail.

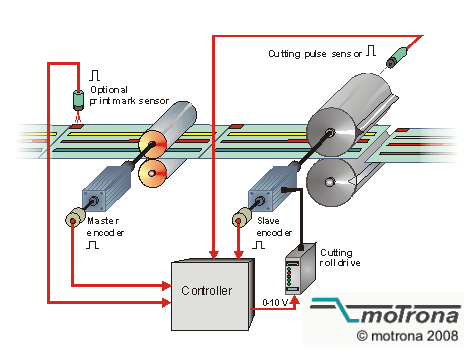

  CT150

  * Stand-alone controller for the motion profile of rotating cutters and all rotary processing requiring synchronous speed while the tool is engaged, and asynchronous speed outside
  * Extremely smooth motion to protect mechanics and gears solution, by self-optimizing polynomial speed transitions
  * High cutting accuracy, even during acceleration and at high line speeds
  * Excellent dynamic properties by closed loop control at a cycle time of only 150 µsec.
  * Can operate with any 4-quadrant drive possessing a +/- 10 V speed reference input
  * Easy PC setup by Windows operator software
  * Remote setting facilities (e.g. cutting length) by either parallel interface, serial RS232/ RS485 interface or CANopen interface.
  PROFIBUS control is possible with use of the PB251 gateway (see accessories)
  * Numerous useful functions like cutting to print marks, register control, integrated batch counter and waste counter
  * Power supply 18 – 30 VDC, built-in aux. 5 VDC supply for encoders
  * +/- 10 V speed reference output for control of the roll drive
  * Closed 19‘‘ steel cassette for rack mounting and for mounting to DIN rail

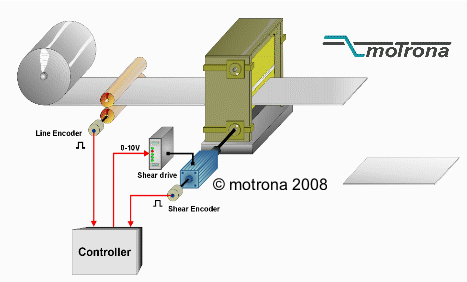

  MC700





    MC700 Motion-Controller with Firmwares CT701.xx:
  Outstanding Performance with Rotary Cut-to-Length Shears







  * MC700 is a universal motion controller for 1 to 4 axis, programmable for multiple motion applications by simple download of the corresponding function firmware.
  * With use of our CT701xx firmwares this unit provides excellent solutions with all kinds of guillotine cutters and rotary eccentric shears needing a cosinus-compensated speed profile during the penetration of the tool.
  * The CT70104 Firmware (“light version”) is suitable for cutting aluminum or regular coil steel with lower thickness.
  * The CT70110 Firmware (“heavy duty version”) is recommended to cut hard stainless steel or coil steel of higher

  thickness.
  * Extremely smooth motion to protect mechanical solution, by self-optimizing polynomial speed transitions
  * High cutting accuracy, even during acceleration and at high line speeds
  * Programmable cosinus-compensated speed profile
  * Special torque control features to master the impact load when cutting hard materials like stainless steel etc.
  * Special profile features to avoid deadlock between tool and material
  * Embedded virtual master axis (selectable)





  CP 2XX

  Em construção.

  KePlast

  Em construção

  Robotics

  Em construção
